The origin and continuation of humankind is base on solar energy. The most basic processes supporting life on earth, such as photosynthesis and the rain cycle, are driven by solar energy. From the very beginning of its history humankind realized that a good use of solar energy is in humankind's benefit. Despite this, only recently, during the last 40 years, has solar energy been harnessed with specialized equipment and used as an alternative source of energy, mainly because it is free and does not harm the environment.
WHAT IS SOLAR ENERGY?
Solar energy is energy made from sunlight. Light from the sun may be used to make electricity, to provide heating and cooling for buildings, and to heat water. Solar energy has been used for thousands of years in other ways as well.
Most life on Earth could not exist without the sun. Most plants produce their food via a chemical process called photosynthesis that begins with sunlight. Many animals include plants as part of their diet, making solar energy an indirect source of food for them.
People can eat both plants and animals in a food chain providing one example of the importance of the sun's energy.
In direct or indirect fashion, the sun is responsible for nearly all the energy sources to be found on Earth. All the coal, oil, and natural gas were produced by decaying plants millions of years ago. In other words, the primary fossil fuels used today are really stored solar energy.
The heat from the sun also drives the wind, which is another renewable source of energy. Wind arises because Earth's atmosphere is heated unevenly by the sun. The only power sources that do not come from the sun's heat are the heat produced by radioactive decay at Earth's core; ocean tides, which are influenced by the moon's gravitational force; and nuclear fusion and fission.
Whenever the sunlight is bright enough to read by, solar energy is available for collection, no matter whether it feels warm. What you are collecting is not the perceptible heat but the 'brightness' - the visible radiant energy. The solar energy-flow on a cloudless minter day in Scandinavia, for example, should not be undervalued; it may be fully half of that on a summer day in Arizona. How you collect solar energy depends on what you want to do with it. As usual, the easiest task is to raise local temperature a few tens of degrees, for space heating or hot water. A 'solar collector', essentially a flat plate of absorbent black metal or plastic, carrying water-tubes and covered by clear glass or plastic, will absorb enough bright sunlight to heat water nearly to boiling point. The hot water can be piped by its own convection currents through radiators, or stored in a tank to be tapped for baths and washing. Travellers in Mediterranean countries like Greece and Israel now see the inclined planes of solar collectors on roof after roof, often with a water-cylinder attached, even in the most remote rural areas. In California and other sunny states, swimming pools are now routinely plumbed into solar collectors to keep them comfortable the year round.
In the mid-1800s a French engineer and math instructor named Auguste Mouchout was granted a patent for solar technology that used the sun to make steam. Mouchout used a dish to concentrate the sun’s rays. His invention was an early version of the dish system. He began working on the project in 1860 in part because he was concerned that his country was too dependent on coal as an energy source.
Mouchout’s design featured a cauldron filled with water. It was surrounded by a polished metal dish that focused the sunlight on the cauldron. This focused sunlight created steam that powered an engine. Mouchout’s original engine generated one-half horsepower.
Over the next twenty years Mouchout continued to improve on his design. He replaced the cauldron with a multi-tubed boiler. This boiler made the engine run even better. Mouchout also made his overall design bigger. However, Mouchout’s invention only found limited applications. It was used in the French protectorate of Algeria as a source of power for a time. Even this utilization was only short-lived, as coal transportation to Algeria improved and coal remained a much cheaper source of energy. Despite this situation, Mouchout was well known in France in his time, had the backing of the French government, and won a medal for his work.
Mouchout’s invention led to innovations on the dish system by other scientists. One of them was John Ericsson (1803–1889), an engineer who was a native of Sweden but who lived in the United States. In the 1870s Ericsson came up with a different version of Mouchout’s means of using the sun to make power. Ericsson attempted to improve on Mouchout’s design. He first replaced the dish with a reflector shaped like a combination of a cone and a dish.
Ericsson later replaced this conical dish shape with a parabolic trough. This trough looked like an oil drum cut in half lengthwise.
The trough reflected the sun’s radiation in a line across the open side of the reflector. What Ericsson came up with evolved into the trough system that is currently used to convert solar energy into electricity.
Ericsson’s creation was simple to make. It tracked the sun in a single direction: either north to south or east to west. The trough could not produce the same temperatures or work as efficiently as the dish-shaped reflector. However, Ericsson’s design was functional from the beginning. Until his death, he continued to try to improve his design with lighter materials for the reflector.
Another scientist worked with Mouchout’s basic design to create a new technology that became important in the late twentieth century.
In 1878 William Adams, an English scientist, came up with a solar technology design that would become the basis for power towers.
Adams set up flat, silvered mirrors in a semicircle around a cauldron.
The mirrors were erected this way so that sunlight could be continuously focused on the cauldron. The mirrors were also placed on a rack that moved along a semicircular track so they could be moved throughout the day around the boiler by an attendant. Most modern solar power towers also use mirrors placed in a semicircle that reflect sunlight onto a boiler that generates steam to run a heat engine.
Adams was able to run a small engine with his invention, though it never moved beyond the experimentation stage.
The American scientist Aubrey Eneas worked with both dishes and troughs, as well as with other solar technologies, in the late nineteenth and early twentieth centuries. Eneas first began experimenting with solar-driven motors. He formed the first solar company, the Solar Motor Company, in 1900 and spent the next five years working on his idea. Eneas first made a reflector similar to Ericsson’s, but he could not make it work.
Then Eneas focused on making a reflector more like Mouchout’s. Eneas improved on Mouchout’s design to make the dish larger by increasing the sides to be more upright. The dish focused the sunlight on a boiler that was 50 percent bigger than earlier versions.
Eneas exhibited his design at a Pasadena, California, ostrich farm.
His demonstration model had a 33-foot diameter reflector with 1,788 mirrors. The boiler could hold 100 gallons (378 liters) of water and was 13 feet (3.9 meters) long. While Eneas received some attention in the press and sold a few of his systems, none could withstand bad weather. His idea failed to catch on.
Solar collectors
In the 1880s a French engineer named Charles Tellier (1828– 1913) made significant strides in the development of the solar collector. He designed the first nonreflecting (that is, nonconcentrating) solar motor. His work in this area led to research for which he was better known: refrigeration.
Tellier’s solar collector was made up of ten plates. Each plate consisted of two iron sheets that were riveted (joined) together so they had a watertight seal. The plates were connected by tubes to form a solar collector. Inside the collector, Tellier placed ammonia instead of water because ammonia has a lower boiling point than water. In 1885 he put such solar collectors on the roof of his home.
When the collector was exposed to the sun, each plate released ammonia gas.
Tellier’s solar collector worked well. The pressurized ammonia gas powered a water pump. This water pump was put in a well and was able to pump about 300 gallons per hour during daytime hours.
Tellier was able to increase the efficiency of his collectors by covering the top with glass and by putting insulation on the bottom.
Tellier believed that his solar collectors would work for anyone in the Northern Hemisphere that had a south-facing roof. He also was certain that his system could be used industrially if more plates were added to the collectors to make the system bigger. Tellier hoped his invention would be used in Africa to provide power and to manufacture ice. But while he realized that he had a good idea, Tellier decided to focus on developing refrigeration technologies.
Other inventors improved on Tellier’s design. In the first decades of the twentieth century American scientists such as Henry Willsie and Frank Shuman came up with their own solar collector designs. Their inventions failed to catch on at the time but continued to improve the technology.
|
El origen y la continuación de la humanidad está basada en la energía solar. Los procesos más básicos que mantienen la vida en la tierra, tales como la fotosíntesis y el ciclo de la lluvia, son mantenidos por la energía solar. Desde el principio de su historia, la humanidad se dio cuenta que un buen uso de la energía solar es en beneficio de la humanidad. A pesar de esto, solo recientemente, durante los últimos 40 años, la energía solar se ha capturado con el equipo especializado y se ha utilizado como fuente de energía alternativa, principalmente porque está libre y no daña el ambiente.
¿QUÉ ES LA ENERGÍA SOLAR?
La energía solar es energía hecha de la luz del sol. La luz del sol se puede utilizar para hacer electricidad, para proporcionar la calefacción y refrigeración a los edificios, y para calentar el agua. La energía solar se ha utilizado por miles de años también en otras maneras.
La mayoría de la vida en la tierra no podría existir sin el sol. La mayoría de las plantas producen su alimento a través un proceso químico llamado fotosíntesis que comienza con la luz del sol. Muchos animales incluyen las plantas como parte de su dieta, haciendo la energía solar una fuente indirecta de su alimento.
La gente puede alimentarse de las plantas y animales en una cadena alimentaria que proporciona un ejemplo de la importancia de la energía del sol.
En la manera directa o indirecta, el sol es responsable de casi todas las fuentes de energía que se encuentran en la tierra. Todo el carbón, petróleo, y gas natural fueron producidos por la descomposición de plantas hace millones de años. Es decir, los combustibles fósiles primarios usados hoy son realmente energía solar almacenada.
El calor del sol también produce el viento, que es otra fuente de energía renovable. El viento se produce porque la atmósfera de la Tierra es calentada irregularmente por el sol. Las únicas fuentes de energía que no provienen del calor del sol son el calor producido por la descomposición radiactiva en el núcleo de la Tierra; las mareas del océano, que son influenciadas por la fuerza gravitacional de la luna; y la fusión y fisión nuclear.
Siempre que la luz del sol sea bastante brillante para leer, la energía solar está disponible para ser recolectada, no interesa si se siente calor o no. Lo qué usted está recogiendo no es el calor perceptible sino el "brillo" o sea la energía radiante visible. La energía que fluye en un día despejado en promedio en Escandinavia, por ejemplo, no debe ser subvalorada; puede ser la mitad de eso en un día de verano en Arizona. Cómo usted recoge la energía solar depende de lo que usted quiere hacer con ella. Como de costumbre, la tarea más fácil es elevar la temperatura local algunas décimas de grados, para la calefacción de espacios o del agua caliente. Un "colector solar", esencialmente una placa plana de metal o de plástico negro absorbente, que dispone de haces de tubos que llevan agua y cubierta por vidrio o plástico claro, absorberá bastante luz del sol brillante para calentar el agua, casi al punto de ebullición. El agua caliente se puede canalizar por sus propias corrientes de convección a través de radiadores, o puede ser almacenada en un tanque, el que será provisto de grifos para los baños y limpieza. Los viajeros por los países mediterráneos como Grecia e Israel ahora ven los planos inclinados de colectores solares en cada azotea, a menudo con un cilindro de agua adjunto, incluso en las zonas rurales más alejadas. En California y otros estados soleados, las piscinas ahora se canalizan en forma rutinaria a colectores solares para mantenerlas confortables todo el año.
Al mediados del 1800 un ingeniero e instructor la matemáticas francés llamado Auguste Mouchout obtuvo una patente por la tecnología solar que utilizaba el sol para producir vapor. Mouchout utilizó un plato para concentrar los rayos del sol. Su invención era una versión inicial del sistema de plato. Él comenzó a trabajar en el proyecto en 1860, en parte porque estaba preocupado de que su país era demasiado dependiente del carbón como fuente de energía.
El diseño de Mouchout contenía una olla a presión llena de agua. Estaba rodeada por un plato pulido de metal que concentraba la luz del sol en la olla. Esta luz de sol enfocada creaba el vapor que accionaba un motor. El motor original de Mouchout generó medio caballo de fuerza.
Durante los siguientes veinte años Mouchout continuó mejorando su diseño. Él substituyó la olla por una caldera de múltiples tubos. Esta caldera hizo el funcionamiento de motor incluso mejor. Mouchout también hizo su diseño total más grande. Sin embargo, la invención de Mouchout encontró solamente usos limitados. Fue utilizada en el protectorado francés de Argelia como fuente de energía por un tiempo. Incluso esta utilización era solamente de breve duración, pues el transporte de carbón a Argelia mejoró y el carbón seguía siendo una fuente de energía mucho más barata. A pesar de esta situación, Mouchout era bien conocido en Francia en su tiempo, tenía el respaldo del gobierno francés, y ganó una medalla por su trabajo. La invención de Mouchout lideró las innovaciones en el sistema de plato de otros científicos. Uno de ellos era John Ericsson (1803-1889), un ingeniero que era natural de Suecia pero quién vivió en los Estados Unidos. En los 1870s Ericsson apareció con una versión diferente del diseño de Mouchout de usar el sol para hacer energía. Ericsson intentó mejorar el diseño de Mouchout. Él primero substituyó el plato por un reflector formado por una combinación de un cono y de un plato. Ericsson substituyó posteriormente esta forma cónica del plato por un colector parabólico. Este colector parabólico parecía un tambor de aceite cortado adentro al medio longitudinalmente.
El colector parabólico reflejaba la radiación del sol en una línea a través del lado abierto del reflector. El diseño de Ericsson evolucionó en el sistema de colector parabólico que se utiliza actualmente para convertir energía solar en electricidad.
La creación de Ericsson era simple de construir. Seguía el sol en una sola dirección: del Norte a Sur o de Este a Oeste. El colector parabólico no podía producir las mismas temperaturas o trabajo tan eficientemente como el reflector en forma de plato. Sin embargo, el diseño de Ericsson era funcional de desde el principio. Hasta su muerte, él continuó intentando mejorar su diseño con materiales más ligeros para el reflector. Otro científico trabajó con el diseño básico de Mouchout para crear una nueva tecnología que llegó a ser importante en siglo XX.
En 1878 William Adams, científico inglés, apareció con un diseño de tecnología solar que se convertiría en la base de las torres de energía.
Adams fijó espejos plateados planos en un semicírculo alrededor de una olla a presión o caldera. Los espejos fueron erigidos de tal modo que la luz del sol se pudiera centrar continuamente en la olla a presión. Los espejos también fueron colocados en un soporte que se movía a lo largo de una pista semicircular, así que podrían ser movidos a lo largo del día alrededor de la caldera por un asistente. La mayoría de las torres modernas de energía solar también utilizan espejos colocados en un semicírculo que reflejan luz del sol sobre una caldera para que genere el vapor para hacer funcionar un motor de calor.
Adams pudo hacer funcionar un pequeño motor con su invención, aunque nunca se movió más allá de la etapa de la experimentación.
El científico americano Aubrey Eneas trabajó con los platos y los colectores parabólicos, así como con otras tecnologías solares, a fines del siglo XIX y comienzos del siglo XX. Eneas primero comenzó a experimentar con motores de impulsión solar. Él creó la primera compañía solar, la Solar Motor Company, en 1900 y pasó los cinco años siguientes trabajando en su idea. Eneas primero hizo un reflector similar al de Ericsson, pero no lo pudo hacer trabajar.
Luego Eneas se centró en la fabricación de un reflector más parecido al de Mouchout. Eneas mejoró el diseño de Mouchout para hacer el plato más grande aumentando los lados para hacerlos más verticales. El plato centraba la luz del sol en una caldera que era 50 por ciento más grande que las versiones anteriores. Eneas exhibió su diseño en una granja de avestruces de Pasadena, California.
El modelo de la demostración tenía un reflector de 33 pies de diámetro con 1.788 espejos. La caldera podría sostener 100 galones (378 litros) de agua y era de 13 pies (3.9 metros) de largo. Mientras que Eneas recibió una cierta atención de parte de la prensa y vendió algunos de sus sistemas, ninguno podría soportar el mal tiempo. Su idea no pudo alcanzar gran popularidad.
Colectores solares
En los 1880s un ingeniero francés llamado Charles Tellier (1828 - 1913) alcanzó pasos significativos en el desarrollo del colector solar. Él diseñó el primer motor solar sin reflexión (es decir, sin concentrador). Su trabajo en esta área lo llevó a investigaciones por las cuales él era más conocido: refrigeración.
El colector solar de Tellier estaba compuesto de hasta diez placas. Cada placa consistía en dos planchas de hierro que eran remachadas (ensambladas) juntas así que tenían un sello hermético al agua. Las placas eran conectadas por tubos para formar un colector solar. Dentro del colector, Tellier colocó amoníaco en vez de agua porque el amoníaco tiene un punto de ebullición más bajo que el agua. En 1885 él puso tales colectores solares en la azotea de su hogar.
Cuando el colector fue expuesto al sol, cada placa lanzaba gas amoníaco.
El colector solar de Tellier funcionó bien. El gas amoníaco a presión impulsaba una bomba de agua. Esta bomba de agua fue puesta en un pozo y podía bombear cerca de 300 galones por hora durante horas diurnas.
Tellier pudo aumentar la eficacia de sus colectores cubriendo la tapa con vidrio y poniendo una aislación en la parte inferior.
Tellier creyó que sus colectores solares funcionarían para cualquier persona en el hemisferio norte que tuviera una azotea orientada hacia el Sur. Él también estaba seguro de que su sistema podría ser utilizado en forma industrial si más placas fueran agregadas a los colectores para hacer al sistema más grande. Tellier esperaba que su invención fuera utilizada en África para proporcionar energía y para fabricar el hielo. Pero mientras que él se dio cuenta de tener una buena idea, Tellier decidió centrarse en el desarrollo de tecnologías de refrigeración.
Otros inventores mejoraron el diseño de Tellier. En las primeras décadas del siglo XX, científicos americanos tales como Henry Willsie y Frank Shuman se destacaron con sus propios diseños del colector solar. Sus invenciones no pudieron alcanzar gran popularidad en ese entonces pero continuaron mejorando la tecnología.
|
Alternative + Renewable Energy - Solar Solutions :
|
|
|
Backup Power Source 2-Panel Add-On Package for Item# 462004 (3600WC Solar 2PV Solar Standby Power System)
Harness the power of the sun to generate your electricity and provide security during power outages. Add another 2 solar panels to the 3600WC Solar 2PV solar package and create your own energy to power household appliances. Plus, each unit acts as an ultra-quiet emergency backup system that monitors your utility companys electric power 24/7. U.S.A. Plug & Play no installation of power system required. Application: Add on package Includes all the components to make the 24 Volt BPS-3600-S system (Item# 462004) capable of creating power from the sun [Read more]
Brand: Backup Power Source
|
Backup Power Source 4-Panel Add-On Package for Item# 462003 (BPS 3600WC Solar 4PV Solar Standby Power System)
Harness the power of the sun to generate your electricity and provide security during power outages. Add another 4 solar panels to the BPS 3600WC Solar 4PV solar package and create your own energy to power household appliances. Plus, each unit acts as an ultra-quiet emergency backup system that monitors your utility companys electric power 24/7. U.S.A. Plug & Play no installation of power system required. Application: Add on, Panels (qty.): 4 Includes all the components to make the 24 Volt BPS-3600-S system capable of creating power from the sun [Read more]
Brand: Backup Power Source
|
Backup Power Source Solar Standby Power System with 2 Solar Panels, Model# 3600WC Solar 2PV
Harness the power of the sun to generate your electricity and provide security during power outages. The 3600WC Solar 2PV solar package is engineered to allow you to create and use your own energy to power household appliances. Plus, each unit acts as an ultra-quiet emergency backup system that monitors your utility companys electric power 24/7. Add another 2 solar panels (Item# 462002, sold separately) and create your own energy to power household appliances. U.S.A. Requires a licensed electrician to install and wire into existing utility panel Application: Household appliances, Watts: 3600 running watts/7500 surge watts for up to 15 seconds, Panel Type: Photovoltaic panel, Panels (qty.): 2, Battery Type: 190ah high capacity, Battery Included: Yes In the event of a power outage, the built-in automatic transfer switch provides backup emergency power and recharges with the power of the sun; no additional transfer switch required unless using in conjunction with a generator Energy is ... [Read more]
Brand: Backup Power Source
|
Backup Power Source Solar Standby Power System with 4 Solar Panels, Model# 3600WC Solar 4PV
Harness the power of the sun to generate your electricity and provide security during power outages. The BPS-3600-S solar package is engineered to allow you to create and use your own energy to power household appliances. Plus, each unit acts as an ultra-quiet emergency backup system that monitors your utility companys electric power 24/7. Add another 4 solar panels (Item# 462001, sold separately) and create your own energy to power household appliances. U.S.A. Requires a licensed electrician to install and wire into existing utility panel Application: Household appliances, Watts: 3600 running watts/7500 surge watts for up to 15 seconds, LED Light: Front panel, Material: Photovoltaic panel, Panels (qty.): 4, Battery Type: 190ah High capacity, Battery Included: Yes In the event of a power outage, the built-in automatic transfer switch provides backup emergency power and recharges with the power of the sun; no additional transfer switch required unless using in conjunction with a gene... [Read more]
Brand: Backup Power Source
|
Backup Power Source Solar Standby Power System, Model# BPS-1250-S
Harness the power of the sun to generate your electricity and provide security during power outages. The BPS-1250-S solar package is engineered to allow you to create and use your own energy to power household appliances. Plus, each unit acts as an ultra-quiet emergency backup system that monitors your utility companys electric power 24/7. U.S.A. Plug & Play no installation of power system required. Application: Household appliances, Watts: 1250 running watts; 1875 watts for up to 15 seconds; 2500 surge watts for up to 10 seconds, LED Light: 6, Material: 150 Watt photovoltaic panel, Panels (qty.): 2, Battery Type: 220Ah batteries, Battery Included: Yes In the event of a power outage, the built-in automatic transfer switch provides backup emergency power and recharges with the power of the sun; no additional transfer switch required unless using in conjunction with a generator Energy is stored in 2 powerful 220Ah batteries, then converted to AC electricity by the systems inverter... [Read more]
Brand: Backup Power Source
|
|
Lighting Essentials Solar Fence Lights 4-Pk.
These Lighting Essentials solar fence lights feature two super-bright white LED lights and a poly crystal solar panel. Lights can be mounted on a fence, wall or wherever light is needed. Application: Lights can be mounted on a fence, wall or wherever light is needed, Light Type: Solar / LED, Power Source: 1 Ni-Cd 600mA Battery, Includes (qty.): 4 Batteries, Battery Required: Yes Lights are 4.67in. x 2.31in. [Read more]
Brand: Lighting Essentials
|
Lighting Essentials Solar Shed Light
This Lighting Essentials solar shed light will light up any area with solar power. This shed light uses 5 white LEDs and features a 5.39in. x 3.55in. solar panel that provides power to keep the lights on, saving money and electricity. Application: Shed light, Light Type: LED, Power Source: Solar, Includes (qty.): 1, Battery Required: Yes (included) [Read more]
Brand: Lighting Essentials
|
Natural Light Energy Systems
Add light to any dark room without heat gain, UV rays or fading. Illuminates up to 150 sq. ft., equivalent to 300 Watts of incandescent lighting. Highly reflective heavy-duty aluminum pipe with seamless aluminum flashing that will not leak and requires no maintenance Fits standard pitched roofs Quick, simple installation; no structural changes required Building code approved [Read more]
Brand: Natural Light Energy Systems
|
Natural Light Energy Systems Light Pipe 10in. Dia., 2ft.L, Model# 10P
2-ft. long extension pipe for Tubular Skylight Kit. Works with Item# 123405. [Read more]
Brand: Natural Light Energy Systems
|
Natural Light Energy Systems Light Pipe Extension 13in. Dia., 2ft.L
2-ft. long extension pipe for Tubular Skylight Kit. Works with Item# 123410. [Read more]
Brand: Natural Light Energy Systems
|
|
Northern Industrial Solar 4-LED Floodlight, Model# 86311
This Northern Industrial solar-powered 4-LED garden floodlight uses 4 powerful LEDs to produce outdoor light. Application: Floodlight, Light Type: 4 LED, Power Source: Solar, Battery Required: No Solar-powered floodlight No need for extension cord or an outlet Weathertight housing Impact-resistant circuitry Automatically turns on at night Automatically turns off in daytime Mounts on wall, deck or in ground (stake included) [Read more]
Brand: Northern Industrial Tools
|
Northern Industrial Solar Panel 11 Watt
12 Volt solar battery charger delivers 11 Watts for boats, RVs and back-up power. Works in all weather conditions. 14 3/4in.L x 11 1/2in.W x 1in.D. LED light shows when charging. Includes wiring, brackets and a solar panel voltage tester. All completely weather resistant. Application: Boats, RVs and back-up power, Watts: 11, Dimensions L x W (in.): 14 3/4 x 11 1/2 x 1, LED Light: Shows when charging, Material: White tempered glass, EVA resin, and a weatherproof film, plus aluminum frame, Panel Type: High-power module using 125mm square multicrystal cells, Panels (qty.): 1 High-power module using 125mm square multicrystal cells with 12.60% module conversion efficiency Modules come with bypass diode to minimize the power drop caused by shade conditions Textured cell surface to reduce the reflection of sunlight and BSF (Black Surface Field) structure to improve cell conversion efficiency: 14.11% 20ft. of wire, voltage tester and plug connectors to add more panels and mounting accessori... [Read more]
Brand: Northern Industrial Tools
|
Northern Industrial Solar Panel 33 Watt
12 Volt solar battery charger delivers 33 Watts for boats, RVs and back-up power. Works in all weather conditions. 38in.L x 11 3/4in.W x 1in.D. LED light shows when charging. Includes wiring, brackets and a solar panel voltage tester. All completely weather resistant. 5-year limited warranty. Application: Boats, RVs and back-up power, Watts: 33, Dimensions L x W (in.): 38 x 11 3/4 x 1, LED Light: Shows when charging, Material: White tempered glass, EVA resin, and a weatherproof film, plus aluminum frame, Panel Type: 125mm square multicrystal cells, Panels (qty.): 1 High-power module using 125mm square multicrystal cells with 12.60% module conversion efficiency Modules come with bypass diode to minimize the power drop caused by shade conditions Textured cell surface to reduce the reflection of sunlight and BSF (Black Surface Field) structure to improve cell conversion efficiency: 14.11% 20ft. of wire, voltage tester and plug connectors to add more panels and mounting accessories [Read more]
Brand: Northern Industrial Tools
|
Northern Industrial Solar Shed Light
Add a light to your shed, barn or anywhere else without an electrical outlet! No wiring required you get a solar panel, rechargeable batteries and 8 Watt light. The sun provides all the power needed, recharging the built-in battery during the day and running the light by night. Even works in cloudy conditions. Application: Shed, Light Type: 8 Watt, Power Source: Solar power, Includes (qty.): 1, Battery Required: Yes Weatherproof design solar panel Includes 8 feet of wire and all mounting hardware [Read more]
Brand: Northern Industrial Tools
|
Northern Industrial Tools 32-LED Lantern with Solar Panel
This versatile Northern Industrial lantern features 32 powerful LEDs and a 1 Watt solar panel to power the unit. Can also be charged with included AC adapter and 12V DC charger. Application: Lighting unit, Light Type: LED, Power Source: Solar panel with AC and DC adapter, Includes (qty.): 1 Lantern Durable ABS construction 6.29in.L x 6.29in.W x 15.35in.H [Read more]
Brand: Northern Tool and Equipment
|
|
Sharp Solar Module 175 Watt, 24 Volt, Model# 39614
The Sunforce Products 24V module delivers 170 watts for grid-connected systems. U.S.A. Application: Grid connected systems, Watts: 175, Dimensions L x W (in.): 32.5 x 62 x 1.8, LED Light: No, Material: Watertight tempered glass, EVA laminate and aluminum frame, Panel Type: 125mm multi-crystal silicon solar cells, Panels (qty.): 1, Battery Included: No 125mm multi-crystal silicon solar cells offer 12.68% module conversion efficiency Advanced surface texturing process increases light absorption and efficiency Subdued, natural look Bypass diodes minimize shade power drop Charge controller required for battery charging (Item# 121150 or 121138 recommended) [Read more]
Brand: Sunforce
|
Sharp Solar Module 80 Watt, Model# 77761
A solar module is included in this kit. 12 Volt solar battery charger delivers 80 Watts for boats, RVs and back-up power. Works in all weather conditions. 47in.L x 21in.W x 1 1/2in.D. Includes wiring, brackets and a solar panel voltage tester. All completely weather resistant. Uses 80 Watt Sharp solar panels. Requires 30 Amp controller Item# 336615 (sold separately) Application: Boats, RVs, back-up power, Watts: 80, Dimensions L x W (in.): 47 x 21 x 1 1/2, LED Light: No, Material: White tempered glass, EVA resin, and a weatherproof film, plus aluminum frame, Panel Type: 125mm square multicrystal cells, Panels (qty.): 1, Battery Included: No High-power solar module using 125mm square multicrystal cells with 12.60% module conversion efficiency Modules come with bypass diode to minimize the power drop caused by shade conditions Textured cell surface to reduce the reflection of sunlight and BSF (Black Surface Field) structure to improve cell conversion efficiency: 14.11% Includes 20 ft.... [Read more]
Brand: Sunforce
|
Sunforce 10-Pk. of Solar Garden Lights, Model# 86115
Sunforce 10-pk. of solar garden lights with bright LEDs automatically turn on at night to illuminate yard or garden. Application: Garden lights, Light Type: LED, Power Source: Solar, Includes (qty.): 10 pk, Battery Required: No 10-pk. of solar garden lights Maintenance-free Super bright white LEDs Automatically turns on at night Powerful amorphous silicon solar cell recharges battery Easy installation no wires! [Read more]
Brand: Sunforce
|
Sunforce 30 Amp Digital Charge Controller, Model# 60032
Digital controller links solar panels together and stabilizes incoming voltage to prevent 12V batteries from overcharge and discharge. Unit reduces overall system maintenance and prolongs battery life. Amps: 30, Watts: 500 Use to link solar panels Prevents overcharge and discharge of 12V batteries Reduces overall system maintenance Prolongs battery life LCD monitor displays charging current and voltage LED bar graph indicates battery charge level Handles up to 30 Amps of solar array current or up to 500 Watts solar power Maintenance free Works with Item#s 339615, 339617, 121125 and 121126 [Read more]
Brand: Sunforce
|
Sunforce 60 Watt Solar Charging Kit Model# 50044
The Sunforce 60 Watt solar charging kit is designed for cabins, RVs, boats, remote power, 12V battery charging and backup power. Application: RVs, boats, remote power, Watts: 60, Dimensions L x W x H (in.): 38.5 x 57 x 2.5, LED Light: Tester included, Material: ABS plastic and amorphous solar cell, Panel Type: Amorphous, Panels (qty.): 4, Battery Included: No High-efficiency crystalline cells are maintenance free and work in all weather conditions Built-in diode protects battery from discharge at night Operating range is -40 to 176 F Max. output up to 60 Watts @ 4 Amps Solar panels are 41in. x 17in. [Read more]
Brand: Sunforce
|
|
Sunforce 60 Watt Solar Panel with 7 Amp Charge Controller, Model# 37015
This crystalline panel was designed for RVs, homes, cabins, boats, remote power, 12V battery charging, solar power stations, pumps, beacons and lighting. Can be connected together to generate more power. Application: RVs, homes, cabins, boats, Watts: 60, Dimensions L x W (in.): 42 x 19 x 3, LED Light: No, Material: Aluminum frame, Panel Type: High-efficiency crystalline cells, Battery Included: No Weatherproof and maintenance free Easy to install Connect multiple panels for more power When linking more than two 60 Watt panels, use Item# 336615 digital charge controller (sold separately) 5-year limited warranty Model 37015 [Read more]
Brand: Sunforce
|
Sunforce Amorphous Solar Panel 50 Watt, Model# 50043
High-wattage solar panel works in sunny and cloudy conditions. Thanks to double junction technology, this panel is more efficient and wears out less over time, meaning you get more power for a longer time. Sturdy aluminum frame Thick glass High stabilized wattage rating Comes with an 8.5 Amp Sunforce ProSeries Charge Controller with pulse width modulation to speed up charging rate by up to 20% and maintain battery health Accessories and mounting brackets included 49in.L x 25in.W x 2in.H [Read more]
Brand: Sunforce
|
Sunforce Industrial Solar Garage Light, Model# 81099
The Sunforce industrial solar garage light is a portable, weatherproof light that is ideal for boat lifts, docks, tool sheds, garages or anywhere power is not available. It features a high-powered aluminum frame solar panel that supplies this highly-efficient, long-lasting fluorescent tube with either AC or DC power. Application: Garage, tool sheds, boat lifts, docks and more, Light Type: 18 Watt, Power Source: Solar, Includes (qty.): 1 A high-powered aluminum frame solar panel Highly-efficient, long-lasting fluorescent tube Works with either AC or DC power Panel and 18 Watt light are completely weatherproof, making it ideal for indoor and outdoor use Wires are 8.5in.L [Read more]
Brand: Sunforce
|
Sunforce Phocos Charge Controller 14 Amp, Model# 60142
This Sunforce Phocos German-engineered charge controller protects batteries from overcharging and discharging and regulates voltage when using 12V solar panels to charge batteries. Pulse width modulation controller with temperature compensation Deep discharge protection, reverse polarity, short circuit and overload protection included Boost and float charge modes Works with Phocos remote meter (Item# 121137) [Read more]
Brand: Sunforce
|
Sunforce Phocos CMM Remote Meter, Model# 60141
The Sunforce Phocos CMM remote meter lets user monitor system from a convenient location. Measures and displays current from solar panel and load as well as battery Use with Phocos charge controller (Item# 121136) Includes 6 1/2 feet of wire [Read more]
Brand: Sunforce
|
|
Sunforce Phocos MPPT Controller 12V/24V Adjustable, 20 Amp, Model# 60140
This Sunforce Phocos German-engineered charge controller ensures maximum performance from your solar array. German-engineered charge controller ensures maximum performance from your solar array Advanced technology pinpoints maximum power output to charge batteries quickly Electronically protected against reverse polarity, overcurrent and over temperature 12V/24V adjustable; 20 Amp [Read more]
Brand: Sunforce
|
Sunforce Pro Series CIGS panel 100 Watt, Model# 36100
High-performance solar panel with copper indium gallium selenide (CIGS) technology provides stable power at a lower cost and does not degrade as quickly as other solar technologies. CIGS technology creates more energy from an equal amount of sunlight than other technologies because of its high conversion efficiency. Aluminum frame and tempered glass top make this ultra-durable solar panel great for home, marine and automotive applications High-quality diode-protected junction box allows for easy connections to charge controllers Recommended for use with Sunforce Pro Series Charge Controllers (Item#s 121149 & 121150) 100 Watt output 46in.L x 43 1/4in.W x 1 5/8in.H [Read more]
Brand: Sunforce
|
Sunforce Pro Series CIGS Panel 70 Watt, Model# 36170
High-performance solar panel with copper indium gallium selenide (CIGS) technology provides stable power at a lower cost and does not degrade as quickly as other solar technologies. CIGS technology creates more energy from an equal amount of sunlight than other technologies because of its high conversion efficiency. Aluminum frame and tempered glass top make this ultra-durable solar panel great for home, marine and automotive use High-quality diode-protected junction box allows for easy connections to charge controllers Recommended for use with Sunforce Pro Series Charge Controllers (Item#s 121149 & 121150) 70 Watt Output 43 1/4in.L x 31in.W x 1 1/2in.H [Read more]
Brand: Sunforce
|
Sunforce Pro Series Controller 12 Volt, 50 Amp Capacity, Model# 60125
High-performance German-engineered charge controller with pulse width modulation for quicker charging and more efficient solar power systems and protects batteries from being overcharged by solar array. Adjusts itself automatically to 12V or 24V system voltages. Features temperature compensation and reverse polarity protection Includes LCD display 50 Amp Capacity Works with Item#s 339615, 339617, 339621, 121126, 121125 and 121130 [Read more]
Brand: Sunforce
|
Sunforce Pro Series Controller 12-Volt, 8.5 Amp Capacity, Model# 60120
High-performance German-engineered charge controller with pulse width modulation for quicker charging and more efficient solar power systems. Designed for small solar systems where no load disconnect is required, such as yachts and RVs where the load/inverter is connected directly to the 12V battery. Features temperature compensation and reverse polarity protection 8.5 Amp Capacity LED display Works with Item#s 339615, 339972, 121130, 336609, 121126 and 121125 [Read more]
Brand: Sunforce
|
|
Sunforce Products ProSeries Solar Backup Power System 1300 Watts
This Sunforce Products ProSeries solar backup power system gives you up to 1300 Watts of power, making it an ideal choice for powering up non-electrified cabins and cottages or storing emergency power. Application: Backup Power, Watts: 1300, Dimensions L x W x H (in.): (10) 59 x 26 3/4 x 2 3/4 panels, Material: Polycrystalline Sharp Modules, Panel Type: Polycrystalline, Panels (qty.): 10, Battery Type: None; min. 600 Ah battery recommended, Battery Included: No Includes ten 130 Watt Sharp module panels; panels are 59in.L x 26 3/4in.W x 2 3/4in.H each 2500 Watt pure sine wave inverter for all types of appliances and sensitive electronics Two 50 Amp charge controllers; controllers are PWM and temperature compensating Minimum 600 Ah battery recommended; battery not included [Read more]
Brand: Sunforce
|
Sunforce Products Solar Backup Power System 800 Watts
This Sunforce Products solar backup power system delivers up to 800 Watts of power, making it an ideal choice for powering up non-electrified cabins and cottages or storing emergency power. Application: Backup Power, Watts: 800, Dimensions L x W x H (in.): (10) 51 1/4 x 25 7/8 x 3 1/2 panels, Material: Polycrystalline Sharp Modules, Panel Type: Polycrystalline, Panels (qty.): 10, Battery Type: None; min. 350 Ah battery recommended, Battery Included: No Includes ten 80 Watt Sharp module panels; panels are 51 1/4in.L x 26 7/8in.W x 3 1/2in.H each 2500 Watt pure sine wave inverter for all types of appliances and sensitive electronics 50 Amp charge controller; controller is PWM and temperature compensating Minimum 350 Ah battery recommended; battery not included [Read more]
Brand: Sunforce
|
Sunforce Solar 16-LED Ultra-Bright Floodlight, Model# 86313
Sunforce solar-powered 16-LED garden floodlight uses 16 powerful LEDs to produce an extra-bright outdoor light. Application: Flood light, Light Type: LED, Power Source: Solar power, Includes (qty.): 1, Battery Required: No, Battery Type: AA NiMH 1, 500 mah Solar-powered floodlight 16 powerful LEDs produce an extra-bright outdoor light No need for extension cord or an outlet Weathertight housing Impact-resistant circuitry Automatically turns on at night Automatically turns off in daytime Mounts on wall, deck or in ground (stake included) [Read more]
Brand: Sunforce
|
Sunforce Solar Charging Kit Solar Module, 123 Watt
A polycrystalline solar module is included with this kit. 12 Volt solar battery charger delivers 123 Watts for boats, RVs and back-up power. Works in all weather conditions. 59in.L x 26in.W x 1 3/4in.D. Includes wiring, brackets and a solar panel voltage tester. All completely weather resistant. Uses a 123 Watt SHARP solar module. Requires 30 Amp controller Item# 336615 (sold separately) Application: Boats, RVs and back-up power, Watts: 123, Dimensions L x W (in.): 59 x 26 x 1 3/4, LED Light: No, Material: White tempered glass, EVA resin, and a weatherproof film, plus aluminum frame, Panel Type: High-power solar module using 125mm square multicrystal cells, Panels (qty.): 1, Battery Included: No High-power solar module using 125mm square multicrystal cells with 12.60% module conversion efficiency Modules come with bypass diode to minimize the power drop caused by shade conditions Textured cell surface to reduce the reflection of sunlight and BSF (Black Surface Field) structure to im... [Read more]
Brand: Sunforce
|
Sunforce Solar Lamp Post Model# 84500
Stylish solar lamp post lets you light decks, gardens and pathways using only the power of the sun Application: Lamp post, Power Source: Solar, Includes (qty.): 1 Installs easily with included ground stakes [Read more]
Brand: Sunforce
|
|
Sunforce Solar LED Floodlights 3-Pc. Set
This Sunforce solar LED floodlight set includes 3 movable LED floodlights powered by a detachable solar panel. Place panel in sun and position lights where needed for optimum lighting of signs, footpaths, gardens or anywhere on your property. Includes wiring. [Read more]
Brand: Sunforce
|
Sunforce Solar Shed Light 10 LED, Model# 81098
Add light to your shed without an electrical outlet with this small, compact and easy-to-install solar shed light. Application: Shed, Light Type: 10 LED, Power Source: Solar, Includes (qty.): 1 Light has a magnet for easy installation on metal frame Weather-resistant Maintenance free Includes 8 feet of wire [Read more]
Brand: Sunforce
|
Ventamatic Solar Panel 10 Watt, Model# VX SOLAR PANEL
Additional 10 Watt multi-crystal solar panel for use with Item#s 336620, 336622. Dimensions O.D. x H (in.): 18 x 13, Works With: Solar Fans, Solar Panel Wattage: 10, Solar Panels Included (qty.): 1 [Read more]
Brand: Ventamatic
|
Ventamatic Solar-Powered Ventilating Fan with Panel Gable-Mounted Ventilator, Model# VX2515SOLARGABL
Harness the energy of the sun to keep your attic cool and well-ventilated. Multi-crystal solar panel is installed on your roof to convert the natural energy provided by the sun. The solar panel converts the sunlight into energy, that energy is then sent to a DC motor that is factory installed in a gable-mounted ventilating fan. CFM: 1, 000, Works With: Gable Mounting, Solar Panel Wattage: 10, Motor Voltage: 17 DC, Blade Size (in.): 14, Cord Length (ft.): 25, Solar Panels Included (qty.): 1, Ventilators Included (qty.): 1 No energy costs Operates from sunrise to sunset No complicated wiring installation No fuel costs, waste or pollution Cools your attic extending the roof material life Reduces the load on your air conditioning system Helps protect attic insulation against mold and mildew in winter by removing moisture-filled air Sufficient for an attic up to 1500 sq. ft. with adequate net free area intake 17 Volt, thermally-protected DC motor [Read more]
Brand: Ventamatic
|
Ventamatic Solar-Powered Ventilating Fan with Panel Roof- Mounted Ventilator, Model# VX1000SOLARROOF
Harness the energy of the sun to keep your attic cool and well-ventilated. Multi-crystal solar panel is installed on your roof to convert the natural energy provided by the sun. The solar panel converts the sunlight into energy, that energy is then sent to a DC motor that is factory installed in a gable-mounted ventilating fan. CFM: 1, 000, Works With: Roof Mounting, Solar Panel Wattage: 10, Motor Voltage: 17 DC, Blade Size (in.): 14, Cord Length (ft.): 25, Solar Panels Included (qty.): 1, Ventilators Included (qty.): 1 No energy costs Operates from sunrise to sunset No complicated wiring installation No fuel costs, waste or pollution Cools your attic extending the roof material life Reduces the load on your air conditioning system Helps protect attic insulation against mold and mildew in winter by removing moisture-filled air Sufficient for an attic up to 1500 sq. ft. with adequate net free area intake 17 Volt, thermally-protected DC motor [Read more]
Brand: Ventamatic
|
|
Your Solar Home DC Powered Inline 5in. Fan
Boosts air flow from a SolarSheat 1500G (Item# 456300) to travel up to 75 feet of 5in. flexible duct. Connects to SolarSheat DC thermostat. Permanently sealed ball bearing motor Includes temperature sensor, wire and electrical connectors to connect fan to SolarSheat DC thermostat (not included) Can connect up to 2 DC fans per thermostat [Read more]
Brand: SolarSheat
|
Your Solar Home SolarSheat 1000G Solar Air Collector System Model# SH1000G-BL
Self-powered solar air heater system is designed for small rooms. Helps reduce heating bills. Air is drawn from the room into the collector, heated and blown back into the room with an integrated solar-powered fan. Thermostat controls room temperature. Unit is a supplemental heater and does not replace existing furnace. Approved by the Solar Rating and Certification Corp. (SRCC) for SRCC OG-100 certification. Application: Solar air heater system for small rooms, Dimensions L x W x H (in.): 56 x 43 x 3.8, Panel Type: Aluminum construction with tempered glass panels and insulated backs and sides, Panels (qty.): 1 Can heat a 70-300 sq. ft. room when the sun is shining Reduces 1/6 ton of C02 greenhouse gases per year Mounts easily on south-facing wall or roof Roof mounting requires additional DC fan kit Item# 456305, sold separately Includes thermostat, mount and duct kit [Read more]
Brand: SolarSheat
|
Your Solar Home SolarSheat 1500G Solar Air Collector, Model# SH1500G-BL
Self-powered solar air collector provides space heat for rooms when the sun is shining. Can heat up to 1000 sq. ft., depending on the building insulation. Air is drawn from inside the room through the bottom of the collector, heated and blown out through a duct in the top. Integrated solar panel provides electricity for fan operation. Unit is a supplemental heating system and does not replace existing furnace. Approved by the Solar Rating and Certification Corp. (SRCC) for SRCC OG-100 certification. Application: Space heat, Dimensions L x W x H (in.): 87 x 43 x 3.8, Material: Extruded aluminum, Panel Type: Integrated solar Easy mounting on south-facing wall or roof Extruded aluminum construction with tempered glass panels Insulated back and sides with R 3.5 rating 87in.L x 43in.W x 3.8in.D [Read more]
Brand: SolarSheat
|
Your Solar Home Solarsheat 1500G/GS Duct Kit, Model# 1017
Kit makes SolarSheat 1500G or 1500GS (Item#s 456300, 456301, 456302) easy to install. Kit has required hardware to duct air into collector and into your home through an 11 thick wall or roof. For easy installation of SolarSheat 1500G or 1500GS (Item#s 456300, 456301, 456302 Includes gasketing, collars, wall grills, fasteners and a digital DC thermostat Roof flashing and roof mounting hardware not included [Read more]
Brand: SolarSheat
|

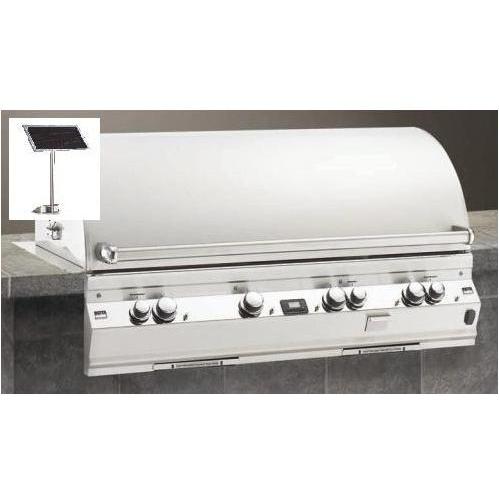

Fire Magic Gas Grills Echelon E1060i All Infrared Built-In Natural Gas Grill With Solar Panel
This Fire Magic Echelon Gas Grill features sleek styling with seamless control panel, double-walled tear-drop hood with warming rack, 110v hard wired electrical supply which powers the 12 volt electric hot surface ignition system with flash tubes, angled halogen internal oven lamps, and 4-zone backlit digital meat and grill thermometer in control panel. Unique solar panel powers internal lights, rotisserie motor and ignition. Also features a wood chip smoker drawer with dedicated burner, heat zone separators, feather lite easy lift hood, stainless valve manifold, polished Comfort Touch control knobs, disposable foil drip tray liners and water and rain resistant construction. Comes ready to be built in to your island opening. 4 Infrared Burners. 1056 square inches of cooking surface (48 x 22 main grilling area). Includes (2) 15, 000 BTU back burners and rotis kit. Island cut-out dimensions: 50 width x 23. 5 depth x 12 height. No hose and/or regulator assembly included. [Read more]
Brand: Fire Magic
|
|
Fire Magic Gas Grills Echelon E1060i All Infrared Built-In Propane Gas Grill With Solar Panel
This Fire Magic Echelon Gas Grill features sleek styling with seamless control panel, double-walled tear-drop hood with warming rack, 110v hard wired electrical supply which powers the 12 volt electric hot surface ignition system with flash tubes, angled halogen internal oven lamps, and 4-zone backlit digital meat and grill thermometer in control panel. Unique solar panel powers internal lights, rotisserie motor and ignition. Also features a wood chip smoker drawer with dedicated burner, heat zone separators, feather lite easy lift hood, stainless valve manifold, polished Comfort Touch control knobs, disposable foil drip tray liners and water and rain resistant construction. Comes ready to be built in to your island opening. 4 Infrared Burners. 1056 square inches of cooking surface (48 x 22 main grilling area). Includes (2) 15, 000 BTU back burners and rotis kit. Island cut-out dimensions: 50 width x 23. 5 depth x 12 height. No hose and/or regulator assembly included. [Read more]
Brand: Fire Magic
|
Fire Magic Gas Grills Echelon E1060i All Infrared Natural Gas Built-In Grill With Solar Panel & Magic View Window
This Fire Magic Echelon Gas Grill features sleek styling with seamless control panel, double-walled tear-drop hood with warming rack, 110v hard wired electrical supply which powers the 12 volt electric hot surface ignition system with flash tubes, angled halogen internal oven lamps, and 4-zone backlit digital meat and grill thermometer in control panel. Unique solar panel powers internal lights, rotisserie motor and ignition. Features Magic View Window allowing you to view your food without lifting the lid and losing valuable heat. Also features a wood chip smoker drawer with dedicated burner, heat zone separators, feather lite easy lift hood, stainless valve manifold, polished Comfort Touch control knobs, disposable foil drip tray liners and water and rain resistant construction. Comes ready to be built in to your island opening. 4 Infrared Burners. 1056 square inches of cooking surface (48 x 22 main grilling area). Includes (2) 15, 000 BTU back burners and rotis kit. Island cut-ou... [Read more]
Brand: Fire Magic
|
AA Battery Solar Panel Charger - 10% Off Red Tag Sale! Price shown reflects 10% discount.
AA Battery Solar Panel Charger AA ChargerUltra compact, ultra lightweight and yet very durable, the PowerFilm AA Foldable Solar Charger is ideal for everyday use. Charging either 2 AA batteries in 3 1/3 hours of full sun or 4 AA batteries in 6 2/3 hours of full sun, the AA Foldable Solar Charger provides highly-effective battery charging. Proprietary charging circuitry maximizes charge into the batteries, and charging lights indicate charging status and charge completion. The lightweight and durable PowerFilm flexible solar panels are integrated directly onto the fabric, keeping the weight of the charger to less than four spare batteries. Six grommets are built into the charger to allow for secure fastening to a pack or to the ground.Operating Voltage: 3.6Operating Current: 0.6Weight (Ounces): 4.18 (Without batteries)Folded Dimensions: 5.5 x 3.3 x 1.4Unfolded Dimensions: 5.5 x 31.5 [Read more]
Brand: PowerFilm
|
F15-1200 20w Folding Solar Panel Charger - 10% Off Red Tag Sale! Price shown reflects 10% discount.
F15-1200 20w Folding Solar Panel Charger PowerFilm F15-1200The Powerfilm 20 Watt Foldable Solar Charger (F15 - 1200) is the middle ground of the Foldable Solar chargers and weighs just under 1 lb. It produces 1.2 Amps at 15.4 Volts and folds up into a 10.5 in. x 6.5 in. rectangle.Folded Weight: .9 lbsOperating Voltage: 15.4Operating Current: .1.2Folded Dimensions: 10.5 x 6.5 x 0.6Unfolded Dimensions: 30 x 30.5Output Cord & connectorsAll PowerFilm authorized accessories include marine-grade components with connectors that match the PowerFilm Series output cord. [Read more]
Brand: PowerFilm
|
F15-1800 30w Folding Solar Panel Charger - 10% Off Red Tag Sale! Price shown reflects 10% discount.
F15-1800 30w Folding Solar Panel Charger PowerFilm F15-1800The Powerfilm 30 Watt Foldable Solar Charger (F15 - 1800), folds into a rectangle that is less than 11 in. x 10 in. It produces 1.8 Amps at 15.4 Volts and can easily fit into a backpack for lightweight compact transportation.Folded Weight: 1.8 lbsOperating Voltage: 15.4Operating Current: 1.3Folded Dimensions: 10.5 x 9.3 x 0.75Unfolded Dimensions: 41.5 x 30.5Output Cord & connectorsAll PowerFilm authorized accessories include marine-grade components with connectors that match the PowerFilm Series output cord. [Read more]
Brand: PowerFilm
|
|
F15-300 5w Folding Solar Panel Charger - 10% Off Red Tag Sale! Price shown reflects 10% discount.
F15-300 5w Folding Solar Panel Charger PowerFilm F15-300The Powerfilm 5 Watt Foldable Solar Charger (F15 300), the smallest of the Foldable solar chargers is ultra lightweight coming in at only 6 oz. The 5 Watt charger is so compact it can fit into a cargo pants pocket.Folded Weight: .38 lbsOperating Voltage: 15.4Operating Current: .3Folded Dimensions: 5.5 x 4.5 x 0.75Unfolded Dimensions: 25.5 x 11Output Cord & connectorsAll PowerFilm authorized accessories include marine-grade components with connectors that match the PowerFilm Series output cord. [Read more]
Brand: PowerFilm
|
F15-3600 60w Folding Solar Panel Charger - 10% Off Red Tag Sale! Price shown reflects 10% discount.
F15-3600 60w Folding Solar Panel Charger PowerFilm F15-3600The Powerfilm 60 Watt Foldable Solar Charger (F15 - 3600), the largest in the Foldable Solar chargers is very lightweight considering the power it produces. It weighs only 2.6 lbs and produces 3.6 Amps at 15.4 Volts.Folded Weight: 2.6 lbsOperating Voltage: 15.4Operating Current: 3.6Folded Dimensions: 10.3 x 8.9 x 2.8Unfolded Dimensions: 60 x 42Output Cord & connectorsAll PowerFilm authorized accessories include marine-grade components with connectors that match the PowerFilm Series output cord. [Read more]
Brand: PowerFilm
|
F15-600 10w Folding Solar Panel Charger - 10% Off Red Tag Sale! Price shown reflects 10% discount.
F15-600 10w Folding Solar Panel Charger PowerFilm F15-600The Powerfilm 10 Watt Foldable Solar Charger (F15 - 600), fits easily into any backpack or laptop bag. It weighs only 9 0z. and can be used in a variety of applications by producing 0.6 Amps at 15.4 Volts.Folded Weight: .56 lbsOperating Voltage: 15.4Operating Current: .6Folded Dimensions: 10.3 x 3.5 x 1.4Unfolded Dimensions: 20.5 x 23Output Cord & connectorsAll PowerFilm authorized accessories include marine-grade components with connectors that match the PowerFilm Series output cord. [Read more]
Brand: PowerFilm
|
R-14 14w Rollable Solar Panel Charger - 10% Off Red Tag Sale! Price shown reflects 10% discount.
R-14 14w Rollable Solar Panel Charger PowerFilm R-14Weight: 1 lbsOperating Voltage: 15.4Operating Current: 0.9Rolled Dimensions: 14.5 x 4Unrolled Dimensions: 14.5 x 42Ultra Light - Ultra Thin - Easy to UsePowerFilm integrated solar panels (thin film on plastic) are developed and manufactured with a proprietary roll process and they are truly rollable unlike other thin film technologies that are only somewhat flexible. PowerFilm solar panels are all monolithically integrated which eliminates the need for damage-prone manual connections of individual solar cells. PowerFilm is made of silicon, a natural resource in abundant supply. PowerFilm is Cadmium Free, unlike some other solar technologies, and performs well in diverse environments, including hot sun, and does not suffer from wasted over-voltage. [Read more]
Brand: PowerFilm
|
R-7 7w Rollable Solar Panel Charger - 10% Off Red Tag Sale! Price shown reflects 10% discount.
R-7 7w Rollable Solar Panel Charger PowerFilm R-7Weight: 0.6 lbsOperating Voltage: 15.4Operating Current: 0.45Folded Dimensions: 4 x 14.5Unfolded Dimensions: 14.5 x 23Ultra Light - Ultra Thin - Easy to UsePowerFilm integrated solar panels (thin film on plastic) are developed and manufactured with a proprietary roll process and they are truly rollable unlike other thin film technologies that are only somewhat flexible. PowerFilm solar panels are all monolithically integrated which eliminates the need for damage-prone manual connections of individual solar cells. PowerFilm is made of silicon, a natural resource in abundant supply. PowerFilm is Cadmium Free, unlike some other solar technologies, and performs well in diverse environments, including hot sun, and does not suffer from wasted over-voltage.IncludesRA-2 (12v Femail Cigarette Lighter Adapter)RA-11 (15ft. Extension Cord with O-ring Battery Terminal Connectors) [Read more]
Brand: PowerFilm
|
|
USB + AA Solar Panel Charger - 10% Off Red Tag Sale! Price shown reflects 10% discount.
USB + AA Solar Panel Charger USB + AA ChargerUltra compact, ultra lightweight and yet very durable, the PowerFlim USB + AA Solar Charger is ideal for everyday use. The USB + AA Solar Charger charges most small USB devices.Proprietary charging circuitry maximizes charge into the batteries. It provides full charge in four hours of full sun, and with a charging light on the side of the enclosure, indicates charging status.Six grommets are built into the charger to allow for secure fastening to a pack or to the ground. Direct integration of the PowerFilm flexible solar panels onto the fabric allows for easy storage into a pocket.Operating Voltage: 3.6Operating Current: 0.4Weight (Ounces): 4.9 (Without batteries)Folded Dimensions: 3.25 x 5.5 x 1.38Unfolded Dimensions: 24 x 5.5 [Read more]
Brand: PowerFilm
|
Moultrie Camera Solar Power Panel
Ensure a continued power source for game cameras with the Moultrie Camera Solar Power Panel. It uses innovative software to combine a solar panel and a built-in 12-volt battery, extending camera life in the field. [Read more]
Brand: Moultrie Products, LLC
|
VDC Electronics BatteryMINDer 12 Volt Solar Charging System with 5 Watt Panel and Desulfator, Model# SCC005
Optimizes all solar panels charge rates. Prevents over/under charging. Full time desulphation pulses safely extends life and performance of all batteries. Features exclusive U.S. Patented PulseMode desulphation circuitry, designed to safely remove sulphation. Desulfates: Yes, Works With: All Batteries, Overcharge Protection: Yes Not for use with aircraft batteries [Read more]
Brand: BatteryMINDer
|
Innovera Minidesk Calculator, LCD Display, Battery/Solar Power - 15966
15966 Desktop Calculator Display Digits12 Digit Size13mm Angled Display Cost/Sell/Margin Percent Add-On/Discount Memory3-Key Baskspace Key Grand Total Key +/- Switch Key Battery/Solar PoweredDual (o..., [Read more]
Brand: Innovera
|
Casio Solar Plus Power Calculator - SL-300
Solar Plus Power, independent memory, and a profit-margin percent function make this calculator a perfect choice for business and home use., [Read more]
Brand: Casio
|
|
Wagan Solar Power e-Charger
Use the power of the sun to charge your portable handheld electronics. To charge the built-in lithium battery just open the cover and face it toward the sunlight. It will be fully charged 5-8 hours later, depending on the intensity of the sunlight. The unit also can be recharged in any electrical outlet using the included AC power adapter. Once it is charged you can close it and take it anywhere to power compatible cell phones, MP3 players, iPods, GPS or any portable device with a 9-volt or USB connection. It also has a built-in LED flashlight that's great for emergencies. Includes multiple power adapters. Features: Charges cell phones and USB devices with sunlight Charges cell phones and USB devices with built in Li-Battery Battery on-board technology Built in LED flashlight Three ways to charge: Solar, Car and AC outlet [Read more]
|
Wagan 8 Watt Solar Power e-Charger
This 8W Solar Panel from Wagan Solar e-Power Battery Charger is simple to use - simply plug in any device that you would normally plug into your cars cigarette lighter, place the panel in the sun and your device will charge! Use to charge laptop computers, cell phones, and other DC devices! Features: 8 Watts Fold up for convenient transport and storage Use to charge laptop computers, cell phones and other DC powered items Specifications: Voltage Max. Power: 15.5V Impedance Max. Power: 0.38A Voltage Open Circuit: 19V Impedance Closed Circuit: 0.42A [Read more]
|
Wagan 6 Watt Solar Power e-Charger
This 6W Solar Panel from Wagan Solar e-Power Battery Charger is simple to use - simply plug in any device that you would normally plug into your cars cigarette lighter, place the panel in the sun and your device will charge! Use to charge laptop computers, cell phones, and other DC devices! Features: 6 Watts Fold up for convenient transport and storage Use to charge laptop computers, cell phones and other DC powered items Specifications: Voltage Max. Power: 15.5V Impedance Max. Power: 0.38A Voltage Open Circuit: 19V Impedance Closed Circuit: 0.42A [Read more]
|
Wagan 30 Watt Solar Power e-Charger
Features: Converts daylight into electricity to charge 12V batteries, extending battery life Ideal for batteries stored in caravans, boats and vehicles in long-term storage Suitable for trickle charging a wide range of batteries and power packs Requires only daylight (not direct sunlight) Monocrystalline solar panel charges even in cloudy and overcast weather Ideal for indoor and outdoor use Specifications: Peak Wattage: 30W Peak Voltage: 15V Peak Currency: 1.94A Life Time: 6-8 years Dimension (inches): 17.71 x 12 x 1.96 Weight (lbs): 11.02 [Read more]
|
Wagan 20 Watt Solar Power e-Charger
Features: Converts daylight into electricity to charge 12V batteries, extending battery life Ideal for batteries stored in caravans, boats and vehicles in long-term storage Suitable for trickle charging a wide range of batteries and power packs Requires only daylight (not direct sunlight) Monocrystalline solar panel charges even in cloudy and overcast weather Ideal for indoor and outdoor use Specifications: Peak Wattage: 20W Peak Voltage: 15V Peak Currency: 1.29A Life Time: 6-8 years Dimension (inches): 11.14 x 9.29 x 1.96 Weight (lbs): 2.64 [Read more]
|
|
Wagan 16 Watt Solar Power e-Charger
Features: Converts daylight into electricity to charge 12V batteries, extending battery life Ideal for batteries stored in caravans, boats and vehicles in long-term storage Suitable for trickle charging a wide range of batteries and power packs Requires only daylight (not direct sunlight) Monocrystalline solar panel charges even in cloudy and overcast weather Ideal for indoor and outdoor use Specifications: Peak Wattage: 16W Peak Voltage: 15V Peak Currency: 1.03A Life Time: 6-8 years Dimension (inches): 11.22 x 8.26 x 1.96 Weight (lbs): 1.98 [Read more]
|
Wagan 12V Solar Power Battery Charger
Made of high-efficiency monocrystalline solar cells embedded in transparent vinyl acetate behind tempered glass. Keeps your car battery charged at top performance Plugs into cigarette lighter socket Set on dashboard to charge Weather/rust/shock/UV resistant frame Works under the cloudiest conditions Ensures quick starts for your vehicle Zero maintenance [Read more]
|
Wagan 12 Watt Solar Power e-Charger
This 12W Solar Panel from Wagan Solar e-Power Battery Charger is simple to use - simply plug in any device that you would normally plug into your cars cigarette lighter, place the panel in the sun and your device will charge! Use to charge laptop computers, cell phones, and other DC devices! Features: 12 Watts Fold up for convenient transport and storage Use to charge laptop computers, cell phones and other DC powered items Specifications: Voltage Max. Power: 15.5V Impedance Max. Power: 0.38A Voltage Open Circuit: 19V Impedance Closed Circuit: 0.42A [Read more]
|
Compucessory Solar Angled Display Calculator - 8 Character(s) - LCD - Solar, Power Adapter Powered - 0.75" x 3.88" x 5" - Ivory
Simple Calculator 0.75"" Height x 3.88"" Width x 5"" Depth 8 Character - LCD 02188 www.compucessory.com Angled display calculator features an eight-digit liquid crystal display (LCD), three-key memory, square root, percent key, percent add-on/discount and auto power off. Solar and battery (one L1131) powered. Solar Power Adapter 1 x L1131 Ivory Square Root Percent Add-on/Discount Three-key Memory Function Compucessory Solar Angled Display Calculator Compucessory Auto Power OFF Large LCD [Read more]
Brand: Innovera
|
Solar-Power Motion-Activated LED Wedge Light
Solar Panel: Throughout the day, the solar charge panel converts direct sunlight into electricity to charge the battery inside the light. When charged in full sunlight, the Solar Security Light can activate up to 100 times when on for 1 minute at time. Durable weatherproof housing protects the solar panel in all weather conditions. Security Light: 2 built-in long-lasting super bright LED lights last virtually forever. Internal reflector for bright light output. Motion activated for security and safety. Mounting screw and hardware included. IP44 weatherproof rating. Auto/On/Off switch control. Includes three rechargeable 1.2V AA batteries. Built-in circuit protector helps prevent over charge or discharge or discharge of battery. Ideal For: Decks, patios, balconies, and entrance doors Garage, driveways, carports and walkways Backyard and sheds Pool areas, stairs and steps [Read more]
|
|
Solar-Power Motion-Activated Dual Head Security Light
Solar Panel: Throughout the day, the solar charge panel converts direct sunlight into electricity to charge the battery inside the light. When charged in full sunlight, the Solar Security Light can activate up to 300 times when on for 1 minute at time. Durable weatherproof housing protects the solar panel in all weather conditions. Comes complete with a 9 ft. cable, the 4.7 x 3.2 inch solar panel can be positioned away from the light to receive the most sunlight, including on rooftops. Adjustable solar panel for either flat or angled rooftops. Security Light: Includes 8 long-lasting super bright LED lights (non-replaceable bulbs). Internal reflector for bright light output. Dual adjustable light heads cover a wide area. Motion activated for security and safety. Adjustable motion sensitivity dial helps prevent false triggering from pets or wind. Lux level adjustment dial prevents the light from operating during daylight hours. Time adjustment dial allows you to control how long the l... [Read more]
|
PowerFilm F15-3600 60w Folding Solar Panel Charger
PowerFilm F15-3600 The Powerfilm 60 Watt Foldable Solar Charger - F15 - 3600 - , the largest in the Foldable Solar chargers is very lightweight considering the power it produces. It weighs only 2. 6 lbs and produces 3. 6 Amps at 15. 4 Volts. Folded Weight: 2. 6 lbs Operating Voltage: 15. 4 Operating Current: 3. 6 Folded Dimensions: 10. 3 x 8. 9 x 2. 8 Unfolded Dimensions: 60 x 42 Output Cord and connectors All PowerFilm and reg; authorized accessories include marine-grade components with connectors that match the PowerFilm and reg; Series output cord. [Read more]
Brand: PowerFilm
|
PowerFilm AA Battery Solar Panel Charger
AA Charger Ultra compact, ultra lightweight and yet very durable, the PowerFilm AA Foldable Solar Charger is ideal for everyday use. Charging either 2 AA batteries in 3 1/3 hours of full sun or 4 AA batteries in 6 2/3 hours of full sun, the AA Foldable Solar Charger provides highly-effective battery charging. Proprietary charging circuitry maximizes charge into the batteries, and charging lights indicate charging status and charge completion. The lightweight and durable PowerFilm flexible solar panels are integrated directly onto the fabric, keeping the weight of the charger to less than four spare batteries. Six grommets are built into the charger to allow for secure fastening to a pack or to the ground. Operating Voltage: 3. 6 Operating Current: 0. 6 Weight - Ounces -: 4. 18 - Without batteries - Folded Dimensions: 5. 5 x 3. 3 x 1. 4 Unfolded Dimensions: 5. 5 x 31. 5 [Read more]
Brand: PowerFilm
|
Moultrie Feeders 6 Volt Solar Panel
Solar Power Deer Feeder Batery Charger- To ensure a continued source of power for your Moultrie Feeders, this constant trickle charger is ideal for areas in which charging feeder batteries may not be convenient. Chargers will not over charge your battery. 6-Volt DC Warranty: One year warranty Warranty: One year warranty Warranty: One year warranty Warranty: One year warranty Warranty: One year warranty Warranty: One year warranty [Read more]
Brand: Moultrie Feeders
|
Powerfilm R-28 28w Rollable Solar Panel Charger
PowerFilm R-28 Weight: 0. 6 lbs Operating Voltage: 15. 4 Operating Current: 1. 8 Rolled Dimensions: 4 x 14. 5 UnRolled Dimensions: 14. 5 x 79. 75 Ultra Light - Ultra Thin - Easy to Use PowerFilm and reg; integrated solar panels - thin film on plastic - are developed and manufactured with a proprietary roll process and they are truly rollable unlike other thin film technologies that are only somewhat flexible. PowerFilm solar panels are all monolithically integrated which eliminates the need for damage-prone manual connections of individual solar cells. PowerFilm is made of silicon, a natural resource in abundant supply. PowerFilm is Cadmium Free, unlike some other solar technologies, and performs well in diverse environments, including hot sun, and does not suffer from wasted over-voltage. Includes RA-2 - 12v Femail Cigarette Lighter Adapter - RA-11 - 15ft. Extension Cord with O-ring Battery Terminal Connectors - [Read more]
Brand: PowerFilm
|
|

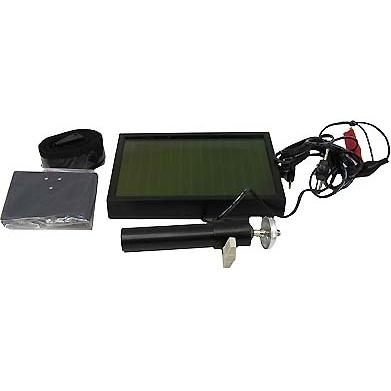

Spy Point Solar Panel Recharger
Solar panel with aluminium tripod. Can be used to recharge lithium battery directly into IR-B and IR-C camera. Can also recharge any 12-volt battery. [Read more]
Brand: Spy Point
|
R-28 28w Rollable Solar Panel Charger
R-28 28w Rollable Solar Panel Charger PowerFilm R-28Weight: 0.6 lbsOperating Voltage: 15.4Operating Current: 1.8Rolled Dimensions: 4 x 14.5UnRolled Dimensions: 14.5 x 79.75Ultra Light - Ultra Thin - Easy to UsePowerFilm integrated solar panels (thin film on plastic) are developed and manufactured with a proprietary roll process and they are truly rollable unlike other thin film technologies that are only somewhat flexible. PowerFilm solar panels are all monolithically integrated which eliminates the need for damage-prone manual connections of individual solar cells. PowerFilm is made of silicon, a natural resource in abundant supply. PowerFilm is Cadmium Free, unlike some other solar technologies, and performs well in diverse environments, including hot sun, and does not suffer from wasted over-voltage.IncludesRA-2 (12v Femail Cigarette Lighter Adapter)RA-11 (15ft. Extension Cord with O-ring Battery Terminal Connectors) [Read more]
Brand: PowerFilm
|
R-21 21w Rollable Solar Panel Charger
R-21 21w Rollable Solar Panel Charger PowerFilm R-21Weight: 1.42 lbsOperating Voltage: 15.4Operating Current: 1.35Rollded Dimensions: 14.5 x 4Unrolled Dimensions: 14.5 x 60.75Ultra Light - Ultra Thin - Easy to UsePowerFilm integrated solar panels (thin film on plastic) are developed and manufactured with a proprietary roll process and they are truly rollable unlike other thin film technologies that are only somewhat flexible. PowerFilm solar panels are all monolithically integrated which eliminates the need for damage-prone manual connections of individual solar cells. PowerFilm is made of silicon, a natural resource in abundant supply. PowerFilm is Cadmium Free, unlike some other solar technologies, and performs well in diverse environments, including hot sun, and does not suffer from wasted over-voltage.IncludesRA-2 (12v Femail Cigarette Lighter Adapter)RA-11 (15ft. Extension Cord with O-ring Battery Terminal Connectors) [Read more]
Brand: PowerFilm
|
American Hunter 225lb. Barrel Feeder with RD Pro Kit, Battery, Solar Panel, and Varmint Zapper
Attract game and bring home a prized trophy with the American Hunter 225lb Barrel Feeder. [Read more]
|
Fire Magic Gas Grills Echelon E1060i Natural Gas Built-In Grill W/ Solar Panel & Magic View Window
This Fire Magic Echelon Gas Grill features sleek styling with seamless control panel, double-walled tear-drop hood with warming rack, 110v hard wired electrical supply which powers the 12 volt electric hot surface ignition system with flash tubes, angled halogen internal oven lamps, and 4-zone backlit digital meat and grill thermometer in control panel. Unique solar panel powers internal lights, rotisserie motor and ignition. Features Magic View Window allowing you to view your food without lifting the lid and losing valuable heat. Also features a wood chip smoker drawer with dedicated burner, heat zone separators, feather lite easy lift hood, industry exclusive cast stainless E burners, stainless rod cooking grids, stainless valve manifold, polished Comfort Touch control knobs, disposable foil drip tray liners and water and rain resistant construction. Comes ready to be built in to your island opening. 4 main burners producing 115, 000 BTU. 1056 square inches of cooking surface (48... [Read more]
Brand: Fire Magic
|
|
Fire Magic Gas Grills Echelon E1060i All Infrared Propane Gas Built-In Grill With Solar Panel & Magic View Window
This Fire Magic Echelon Gas Grill features sleek styling with seamless control panel, double-walled tear-drop hood with warming rack, 110v hard wired electrical supply which powers the 12 volt electric hot surface ignition system with flash tubes, angled halogen internal oven lamps, and 4-zone backlit digital meat and grill thermometer in control panel. Unique solar panel powers internal lights, rotisserie motor and ignition. Features Magic View Window allowing you to view your food without lifting the lid and losing valuable heat. Also features a wood chip smoker drawer with dedicated burner, heat zone separators, feather lite easy lift hood, stainless valve manifold, polished Comfort Touch control knobs, disposable foil drip tray liners and water and rain resistant construction. Comes ready to be built in to your island opening. 4 Infrared Burners. 1056 square inches of cooking surface (48 x 22 main grilling area). Includes (2) 15, 000 BTU back burners and rotis kit. Island cut-ou... [Read more]
Brand: Fire Magic
|
Fire Magic Gas Grills Echelon E660i All Infrared Propane Gas Built-In Grill With Solar Panel
This Fire Magic Echelon Gas Grill features sleek styling with seamless control panel, double-walled tear-drop hood with warming rack, 110v hard wired electrical supply which powers the 12 volt electric hot surface ignition system with flash tubes, angled halogen internal oven lamps, and 4-zone backlit digital meat and grill thermometer in control panel. Unique solar panel powers internal lights, rotisserie motor and ignition. Also features a wood chip smoker drawer with dedicated burner, heat zone separators, feather lite easy lift hood, stainless valve manifold, polished Comfort Touch control knobs, disposable foil drip tray liners and water and rain resistant construction. Comes ready to be built in to your island opening. 3 Infrared Burners. 660 square inches of cooking surface (30 x 22 main grilling area). Includes 19, 000 BTU back burner and rotis kit. Island cut-out dimensions: 31. 25 width x 23. 5 depth x 12 height. No hose and/or regulator assembly included. [Read more]
Brand: Fire Magic
|
Fire Magic Gas Grills Echelon E660i Propane Gas Built-In Grill With Solar Panel
This Fire Magic Echelon Gas Grill features sleek styling with seamless control panel, double-walled tear-drop hood with warming rack, 110v hard wired electrical supply which powers the 12 volt electric hot surface ignition system with flash tubes, angled halogen internal oven lamps, and 4-zone backlit digital meat and grill thermometer in control panel. Unique solar panel powers internal lights, rotisserie motor and ignition. Also features a wood chip smoker drawer with dedicated burner, heat zone separators, feather lite easy lift hood, industry exclusive cast stainless E burners, stainless rod cooking grids, stainless valve manifold, polished Comfort Touch control knobs, disposable foil drip tray liners and water and rain resistant construction. Comes ready to be built in to your island opening. 3 main burners producing 78, 000 BTU. 660 square inches of cooking surface (30 x 22 main grilling area). Includes 19, 000 BTU back burner and rotis kit. Island cut-out dimensions: 31. 25 w... [Read more]
Brand: Fire Magic
|
Fire Magic Gas Grills Echelon E660i Natural Gas Built-In Grill W/ Solar Panel And One Infrared Burner
This Fire Magic Echelon Gas Grill features sleek styling with seamless control panel, double-walled tear-drop hood with warming rack, 110v hard wired electrical supply which powers the 12 volt electric hot surface ignition system with flash tubes, angled halogen internal oven lamps, and 4-zone backlit digital meat and grill thermometer in control panel. Unique solar panel powers internal lights, rotisserie motor and ignition. Also features a wood chip smoker drawer with dedicated burner, heat zone separators, feather lite easy lift hood, industry exclusive cast stainless E burner, stainless rod cooking grids, stainless valve manifold, polished Comfort Touch control knobs, disposable foil drip tray liners and water and rain resistant construction. Comes ready to be built in to your island opening. 1 Factory-Installed Infrared Burner (on left side) and 2 Cast Stainless Steel E Burners. 660 square inches of cooking surface (30 x 22 main grilling area). Includes 19, 000 BTU back burner ... [Read more]
Brand: Fire Magic
|
Fire Magic Gas Grills Echelon E1060i Propane Gas Built-In Grill With Solar Panel
This Fire Magic Echelon Gas Grill features sleek styling with seamless control panel, double-walled tear-drop hood with warming rack, 110v hard wired electrical supply which powers the 12 volt electric hot surface ignition system with flash tubes, angled halogen internal oven lamps, and 4-zone backlit digital meat and grill thermometer in control panel. Unique solar panel powers internal lights, rotisserie motor and ignition. Also features a wood chip smoker drawer with dedicated burner, heat zone separators, feather lite easy lift hood, industry exclusive cast stainless E burners, stainless rod cooking grids, stainless valve manifold, polished Comfort Touch control knobs, disposable foil drip tray liners and water and rain resistant construction. Comes ready to be built in to your island opening. 4 main burners producing 115, 000 BTU. 1056 square inches of cooking surface (48 x 22 main grilling area). Includes (2) 15, 000 BTU back burners and rotis kit. Island cut-out dimensions: 5... [Read more]
Brand: Fire Magic
|
|

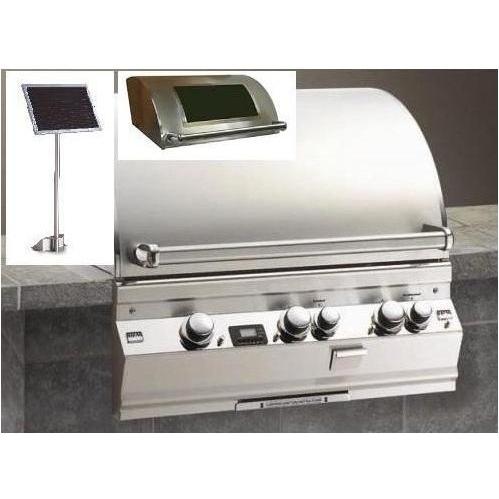

Fire Magic Gas Grills Echelon E660i All Infrared Propane Gas Built-In Grill With Solar Panel And Magic View Window
This Fire Magic Echelon Gas Grill features sleek styling with seamless control panel, double-walled tear-drop hood with warming rack, 110v hard wired electrical supply which powers the 12 volt electric hot surface ignition system with flash tubes, angled halogen internal oven lamps, and 4-zone backlit digital meat and grill thermometer in control panel. Features Magic View Window allowing you to view your food without lifting the lid and losing valuable heat. Unique solar panel powers internal lights, rotisserie motor and ignition. Also features a wood chip smoker drawer with dedicated burner, heat zone separators, feather lite easy lift hood, stainless valve manifold, polished Comfort Touch control knobs, disposable foil drip tray liners and water and rain resistant construction. Comes ready to be built in to your island opening. 3 Infrared Burners. 660 square inches of cooking surface (30 x 22 main grilling area). Includes 19, 000 BTU back burner and rotis kit. Island cut-out dime... [Read more]
Brand: Fire Magic
|
Fire Magic Gas Grills Echelon E1060i Natural Gas Built-In Grill With Solar Panel
This Fire Magic Echelon Gas Grill features sleek styling with seamless control panel, double-walled tear-drop hood with warming rack, 110v hard wired electrical supply which powers the 12 volt electric hot surface ignition system with flash tubes, angled halogen internal oven lamps, and 4-zone backlit digital meat and grill thermometer in control panel. Unique solar panel powers internal lights, rotisserie motor and ignition. Also features a wood chip smoker drawer with dedicated burner, heat zone separators, feather lite easy lift hood, industry exclusive cast stainless E burners, stainless rod cooking grids, stainless valve manifold, polished Comfort Touch control knobs, disposable foil drip tray liners and water and rain resistant construction. Comes ready to be built in to your island opening. 4 main burners producing 115, 000 BTU. 1056 square inches of cooking surface (48 x 22 main grilling area). Includes (2) 15, 000 BTU back burners and rotis kit. Island cut-out dimensions: 5... [Read more]
Brand: Fire Magic
|
Fire Magic Gas Grills Echelon E790i All Infrared Propane Gas Built-In Grill With Solar Panel
This Fire Magic Echelon Gas Grill features sleek styling with seamless control panel, double-walled tear-drop hood with warming rack, 110v hard wired electrical supply which powers the 12 volt electric hot surface ignition system with flash tubes, angled halogen internal oven lamps, and 4-zone backlit digital meat and grill thermometer in control panel. Unique solar panel powers internal lights, rotisserie motor and ignition. Also features a wood chip smoker drawer with dedicated burner, heat zone separators, feather lite easy lift hood, stainless valve manifold, polished Comfort Touch control knobs, disposable foil drip tray liners and water and rain resistant construction. Comes ready to be built in to your island opening. 3 Infrared Burners. 792 square inches of cooking surface (36 x 22 main grilling area). Includes 23, 000 BTU back burner and rotis kit. Island cut-out dimensions: 37 width x 23. 5 depth x 12 height. No hose and/or regulator assembly included. [Read more]
Brand: Fire Magic
|
Fire Magic Gas Grills Echelon E660i Propane Gas Built-In Grill With Solar Panel And Magic View Window
This Fire Magic Echelon Gas Grill features sleek styling with seamless control panel, double-walled tear-drop hood with warming rack, 110v hard wired electrical supply which powers the 12 volt electric hot surface ignition system with flash tubes, angled halogen internal oven lamps, and 4-zone backlit digital meat and grill thermometer in control panel. Features Magic View Window allowing you to view your food without lifting the lid and losing valuable heat. Unique solar panel powers internal lights, rotisserie motor and ignition. Also features a wood chip smoker drawer with dedicated burner, heat zone separators, feather lite easy lift hood, industry exclusive cast stainless E burners, stainless rod cooking grids, stainless valve manifold, polished Comfort Touch control knobs, disposable foil drip tray liners and water and rain resistant construction. Comes ready to be built in to your island opening. 3 main burners producing 78, 000 BTU. 660 square inches of cooking surface (30 x... [Read more]
Brand: Fire Magic
|
Fire Magic Gas Grills Echelon E1060i Propane Gas Built-In Grill W/ Solar Panel & One Infrared Burner
This Fire Magic Echelon Gas Grill features sleek styling with seamless control panel, double-walled tear-drop hood with warming rack, 110v hard wired electrical supply which powers the 12 volt electric hot surface ignition system with flash tubes, angled halogen internal oven lamps, and 4-zone backlit digital meat and grill thermometer in control panel. Unique solar panel powers internal lights, rotisserie motor and ignition. Also features a wood chip smoker drawer with dedicated burner, heat zone separators, feather lite easy lift hood, industry exclusive cast stainless E burner, stainless rod cooking grids, stainless valve manifold, polished Comfort Touch control knobs, disposable foil drip tray liners and water and rain resistant construction. Comes ready to be built in to your island opening. 1 Factory-Installed Infrared Burner (on left side) and 3 Cast Stainless Steel E Burners. 1056 square inches of cooking surface (48 x 22 main grilling area). Includes (2) 15, 000 BTU back bu... [Read more]
Brand: Fire Magic
|
|
|
|
|
What is a Solar Dish-Engine System?
A Solar Dish-Engine System is an electric generator that “burns” sunlight instead of gas or coal to produce electricity. The major parts of a system are the solar concentrator and the power conversion unit.
Solar dish-engine systems convert sunlight into electricity at very high efficiencies higher than any other solar technology.
NorthernTool.com
The dish , which is more specifically referred to as a concentrator, is the primary solar component of the system. It collects the solar energy coming directly from the sun (the solar energy that causes you to cast a shadow) and concentrates or focuses it on a small area. The resultant solar beam has all of the power of the sunlight hitting the dish but is concentrated in a small area so that it can be more efficiently used. Glass mirrors reflect ~ 92% of the sunlight that hits them, are relatively inexpensive, can be cleaned, and last a long time in the outdoor environment, making them an excellent choice for the reflective surface of a solar concentrator. The dish structure must track the sun continuously to reflect the beam into the thermal receiver.
The power conversion unit includes the thermal receiver and the engine/ generator. The thermal receiver is the interface between the dish and the engine/generator. It absorbs the concentrated beam of solar energy, converts it to heat, and transfers the heat to the engine/generator. A thermal receiver can be a bank of tubes with a cooling fluid, usually hydrogen or helium, which are the heat transfer medium and also the working fluid for an engine. Alternate thermal receivers are heat pipes wherein the boiling and condensing of an intermediate fluid is used to transfer the heat to the engine |
¿Qué es un sistema de motor de plato solar?
Un sistema de motor de plato solar es un generador eléctrico que “quema” luz del sol en vez de gas o de carbón para producir electricidad. Las partes principales del sistema son el concentrador solar y la unidad de conversión de energía.
Los sistemas de motor de plato solar convierten luz del sol en electricidad con eficiencia muy alta, mayor que cualquier otra tecnología solar.
El plato, al que se refiere más específicamente como concentrador, es el componente solar primario del sistema. Recoge la energía solar que viene directamente del sol (la energía solar que hace que usted produzca una sombra) y la concentra o enfoca en un área pequeña. El haz de luz solar resultante tiene toda la energía de la luz del sol que incide sobre el plato, pero se encuentra concentrada en un área pequeña para poder utilizarla más eficientemente. Los espejos de cristal reflejan el ~ 92% de la luz del sol que les incide, son relativamente baratos, se pueden limpiar, y durar un largo tiempo en el ambiente al aire libre, convirtiéndolos en una excelente elección para la superficie reflectora de un concentrador solar. La estructura del plato debe seguir el sol continuamente para reflejar el haz en el receptor térmico.
La unidad de conversión de energía incluye el receptor térmico y el motor/generador. El receptor térmico es la interfaz entre el plato y el motor/generador. Absorbe el haz de luz concentrada de energía solar, lo convierte al calor, y transfiere el calor al motor/generador. Un receptor térmico puede ser un banco de tubos con un líquido de enfriamiento, generalmente hidrógeno o helio, que son el medio de trasporte térmico y también el fluido de trabajo para el motor. Receptores térmicos alternativos son tubos de calor en donde la ebullición y la condensación de un líquido intermedio son usadas para transferir el calor al motor. |
|
|
|
